無刷無齒槽電機
EC系列直流無刷無槽電機提供Ø13mm, Ø16mm, Ø22mm等多種外徑及機身長度規格，各系列均提供多種額定電壓版本，根據客戶需求提供齒輪箱、編碼器、高低速應用、高低溫環境等定制選項，更多產品詳情敬請咨詢鳴志在線客服。

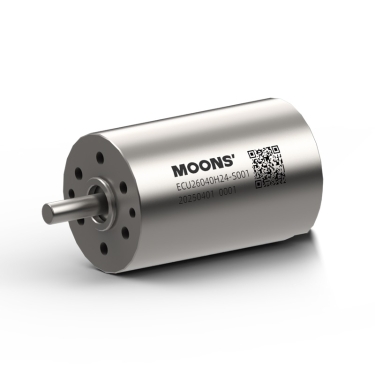

ECU26040系列直流無刷無齒槽電機
Ø26mm直流無刷無齒槽電機、多種減速機和編碼器方案可供選擇、小尺寸、大力矩、高轉速
| 型號 | 額定電壓 | 空載轉速 (rpm) |
電機長度 (mm) |
額定功率 | 額定轉矩 (mNm) |
額定電流 (A) |
最大連續轉矩 (mNm) |
最大連續電流 (A) |
速度/轉矩斜率 (rpm/mNm) |
重量 (kg) |
價格(未稅) | 比較 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ECU26040H12-S001 | 12Vdc | 10339 | 40 | 28 | 22 | 2.2 | 30.7 | 2.95 | 52.8 | 0.13 |
￥1,298.00
|
|
| ECU26040H24-S001 | 24Vdc | 10220 | 40 | 28 | 22 | 1.1 | 30.6 | 1.49 | 49.4 | 0.13 |
￥1,298.00
|
|
| ECU26040H36-S001 | 36Vdc | 10430 | 40 | 28 | 22 | 0.76 | 30.6 | 1.04 | 47.3 | 0.13 |
￥1,298.00
|
|
| ECU26040H48-S001 | 48Vdc | 10517 | 40 | 28 | 22 | 0.47 | 29.6 | 0.75 | 50.1 | 0.13 |
￥1,298.00
|
|
| ECU26040H24-S002&PG26M-0004 | 24Vdc | 2587.3 | 61.6 | 28 | 79.9 | 1.1 | 49.4 | 0.206 |
￥2,008.00
|
|||
| ECU26040H24-S002&PG26M-0021 | 24Vdc | 487.8 | 68.5 | 28 | 382.5 | 1.82 | 49.4 | 0.222 |
￥2,135.00
|
|||
| ECU26040H24-S002&PG26M-0062 | 24Vdc | 167.5 | 75.5 | 28 | 1060 | 1.1 | 49.4 | 0.245 |
￥2,300.00
|
|||
| ECU26040H24-S002&PG26M-0138 | 24Vdc | 73.9 | 75.5 | 28 | 2370 | 1.1 | 49.4 | 0.245 |
￥2,300.00
|
|||
| ECU26040H24-S002&M24-1024&PG26M-0004 | 24Vdc | 2587.3 | 71.4 | 28 | 79.9 | 1.1 | 49.4 | 0.215 |
￥2,604.00
|
|||
| ECU26040H24-S002&M24-1024&PG26M-0021 | 24Vdc | 487.8 | 78.3 | 28 | 382.5 | 1.1 | 49.4 | 0.237 |
￥2,731.00
|
|||
| ECU26040H24-S002&M24-1024&PG26M-0062 | 24Vdc | 166.2 | 85.3 | 28 | 1055 | 1.1 | 49.4 | 0.26 |
￥2,896.00
|
|||
| ECU26040H24-S002&M24-1024&PG26M-0138 | 24Vdc | 73.9 | 85.4 | 28 | 2373 | 1.1 | 49.4 | 0.26 |
￥2,896.00
|
展開查看更多
ECU26056系列直流無刷無齒槽電機
Ø26mm直流無刷無齒槽電機、多種減速機和編碼器方案可供選擇、小尺寸、大力矩、高轉速
| 型號 | 額定電壓 | 空載轉速 (rpm) |
電機長度 (mm) |
額定功率 | 最大連續轉矩 (mNm) |
最大連續電流 (A) |
額定電流 (A) |
額定轉矩 (mNm) |
速度/轉矩斜率 (rpm/mNm) |
轉子慣量 (g?cm2) |
重量 (kg) |
價格(未稅) | 比較 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ECU26056H12-S001 | 12Vdc | 10105 | 56 | 55 | 59.71 | 5.54 | 3.6 | 45 | 16.7 | 9 | 0.187 |
￥1,479.00
|
|
| ECU26056H24-S001 | 24Vdc | 10300 | 56 | 55 | 58.36 | 2.87 | 1.84 | 45 | 16 | 9 | 0.187 |
￥1,479.00
|
|
| ECU26056H36-S001 | 36Vdc | 10329 | 56 | 55 | 57.75 | 1.95 | 1.24 | 45 | 15.2 | 9 | 0.187 |
￥1,479.00
|
|
| ECU26056H48-S001 | 48Vdc | 10450 | 56 | 55 | 57.1 | 1.48 | 0.92 | 44 | 15.3 | 9 | 0.187 |
￥1,479.00
|
|
| ECU26056H24-S003&M24-1024 | 24Vdc | 10300 | 65.9 | 55 | 58.36 | 2.87 | 1.84 | 45 | 16 | 9 | 0.196 |
￥2,075.00
|
|
| ECU26056H24-S002&PG26M-0004 | 24Vdc | 2607.6 | 77.6 | 55 | 1.82 | 163.5 | 15.7 | 0.229 |
￥2,189.00
|
||||
| ECU26056H24-S002&PG26M-0021 | 24Vdc | 491.6 | 84.5 | 55 | 1.82 | 782.5 | 15.7 | 0.279 |
￥2,316.00
|
||||
| ECU26056H24-S002&PG26M-0062 | 24Vdc | 167.5 | 91.7 | 55 | 1.82 | 2160 | 15.7 | 0.302 |
￥2,481.00
|
||||
| ECU26056H24-S002&PG26M-0138 | 24Vdc | 37.2 | 91.5 | 55 | 1.726 | 4500 | 15.7 | 0.272 |
￥2,481.00
|
||||
| ECU26056H24-S002&M24-1024&PG26M-0004 | 24Vdc | 2607.6 | 87.4 | 55 | 1.82 | 163.5 | 15.7 | 0.259 |
￥2,785.00
|
||||
| ECU26056H24-S002&M24-1024&PG26M-0021 | 24Vdc | 491.6 | 94.3 | 55 | 1.82 | 782.5 | 15.7 | 0.279 |
￥2,912.00
|
||||
| ECU26056H24-S002&M24-1024&PG26M-0138 | 24Vdc | 74.5 | 101.3 | 55 | 1.726 | 4500 | 15.7 | 0.302 |
￥3,077.00
|
||||
| ECU26056B24-S005&M24-1024&PG26M-0021 | 24Vdc | 491.6 | 133 | 55 | 1.82 | 782.5 | 15.7 | 0.366 |
￥7,223.00
|
||||
| ECU26056H12-S002&PG26M-0004 | 12Vdc | 2558.2 | 77.6 | 55 | 3.6 | 163.5 | 16.7 | 0.229 |
￥2,189.00
|
||||
| ECU26056H12-S002&PG26M-0021 | 12Vdc | 482.3 | 84.5 | 55 | 3.6 | 782.5 | 16.7 | 0.249 |
￥2,316.00
|
||||
| ECU26056H12-S002&PG26M-0138 | 12Vdc | 73.1 | 91.5 | 55 | 3.416 | 4500 | 16.7 | 0.272 |
￥2,481.00
|
||||
| ECU26056H12-S002&M24-1024&PG26M-0004 | 12Vdc | 2558.2 | 87.4 | 55 | 3.6 | 163.5 | 16.7 | 0.259 |
￥2,785.00
|
||||
| ECU26056H12-S002&M24-1024&PG26M-0021 | 12Vdc | 482.3 | 94.3 | 55 | 3.6 | 782.5 | 16.7 | 0.279 |
￥2,912.00
|
||||
| ECU26056H12-S002&M24-1024&PG26M-0138 | 12Vdc | 73.1 | 101.3 | 55 | 3.416 | 4500 | 16.7 | 0.302 |
￥3,077.00
|
||||
| ECU26056H36-S002&PG26M-0004 | 36Vdc | 2614.9 | 77.6 | 55 | 1.24 | 163.5 | 15.2 | 0.229 |
￥2,189.00
|
||||
| ECU26056H36-S002&PG26M-0021 | 36Vdc | 493 | 84.5 | 55 | 1.24 | 782.5 | 15.2 | 0.249 |
￥2,316.00
|
||||
| ECU26056H36-S002&PG26M-0138 | 36Vdc | 74.7 | 91.5 | 55 | 1.174 | 4500 | 15.2 | 0.272 |
￥2,481.00
|
||||
| ECU26056H36-S002&M24-1024&PG26M-0138 | 36Vdc | 74.7 | 101.3 | 55 | 1.174 | 4500 | 15.2 | 0.302 |
￥3,077.00
|
||||
| ECU26056H36-S002&M24-1024&PG26M-0021 | 36Vdc | 493 | 94.3 | 55 | 1.24 | 782.5 | 15.2 | 0.279 |
￥2,912.00
|
||||
| ECU26056H36-S002&M24-1024&PG26M-0004 | 36Vdc | 2614.9 | 101.3 | 55 | 1.24 | 163.5 | 15.2 | 0.259 |
￥2,785.00
|
展開查看更多
